Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making Machine

China Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making  Machine supplier
Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making  Machine supplier Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making  Machine supplier Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making  Machine supplier Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making  Machine supplier

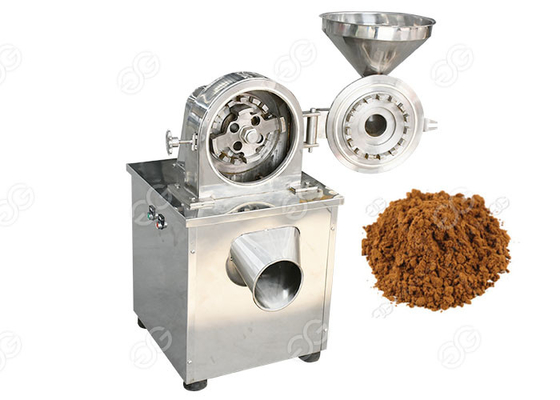

Large Image :  Small Scale Cocoa Powder Grinding Machine Electric Ginger Powder Making Machine

Product Details:

Place of Origin: China
Brand Name: GELGOOG
Certification: CE
Model Number: GG-20B-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Packing as Export Standard
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union, Money Gram
Supply Ability: 200 Sets Per Month
Contact Now
Detailed Product Description
Capacity: 60-150 Kg/h Crushing Size: 60-120 Mesh
Voltage: 220/380 V Power Source: Electric
Machine Type: Powder Grinding Machine Customized: Yes

Description of Cocoa Powder Grinding Machine

The powder grinding macine can be used in pharmaceutical, food, chemical industry, and can crush all kinds of materials, such as cocoa bean, ginger, chilli, turmeric, pepper, tamarind, limestone, gypsum, paints, pigments etc.. The machine consists of the feeding part and the pulverizing part. The configuration is very simple. All components contacting the material are made of stainless steel.



Working Principle of Ginger Powder Making Machine

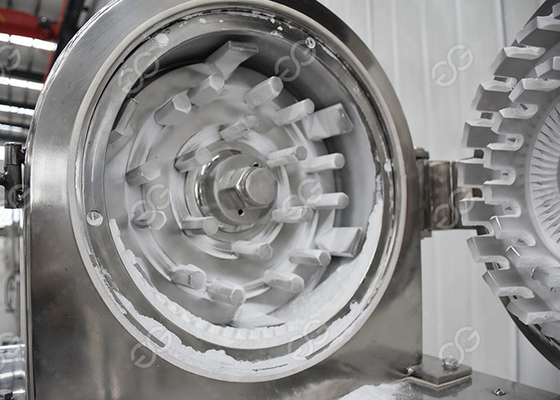

The machine uses the wide wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. We can change the size of the particles by changing the screen.



Advantages of Ginger Powder Processing Machine

1. Use high quality 304 stainless steel structure, low operation noise.

2. The grinding effect is uniform and the efficiency is high.

3. According to customer needs, we can add water cooling device and conveying screw.

4. Powder fineness can be adjusted.

5. All parts contacting the surface part of the material are made of stainless steel, which meet the requirements of the national standard and conform to the hygienic standard of GMP.

6. Powder mesh is controlled by sieve (20/40/60/80/100/120 mesh for your choice).



Technical Parameter of Cocoa Powder Making Machine

Model GG-20B-C
Capacity 60-150 kg/h
Revolution of spindle 4500r/min
Size of fed material (mm) 6
Crushing size 60-120 mesh
Crushing motor 4 kw
Cleaning motor 0.75 kw
Dimension(mm) 1100*600*1650
Weight 250 kg



Small Cocoa Powder Grinding Machine
