Product Details:
Payment & Shipping Terms:
|
| Scope Of Application: | Juice, Chili Sauce, Hot Sauce, Peanut Butter, Cosmetic, Etc | Rated Air Pressure: | 0.5-0.7Mpa |
|---|---|---|---|
| Filling Speed: | 16-20 Bottles/Min | Filling Accuracy: | ±1 % |
| Voltage: | 220V 50/60Hz | SS Material: | SUS304 |
| High Light: | packet packing machine,food packaging sealing equipment |
||

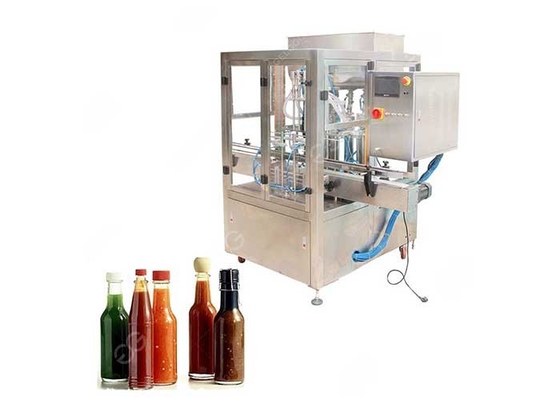

Small Scale Chili Sauce Bottle Filling Machine Hot Sauce Filling Machine
Features of Chili Sauce Bottle Filling Machine:
Filling Parts:
1. The sauce filling machine adopts 316L Stainless steel piston pumps for quantitative filling . It is easy to clean. There is have O-ring and seal gasket in the pump, so there is no impurity, and do not pollute the liquid. Besides, the filling precision of this pump is high. And touch screen controls all action.
2. The mainframe running speed is stepless frequency conversion.
3. The product quantity can be controlled.
4. Automatic stop function, if there is no filling, no inner plug in any rail, it will stop automatically.
Capping Part:
1.PCO,plastic cap, metal cap, aluminum cap.
2.No bottle no capping.
3.Two sensor to check, PLC control.
4. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
5. All 304stainless steel construction.
6. Automatic stop when lack of bottle.
7. Automatic caps arranging and feeding, lack of caps automatic feeding.

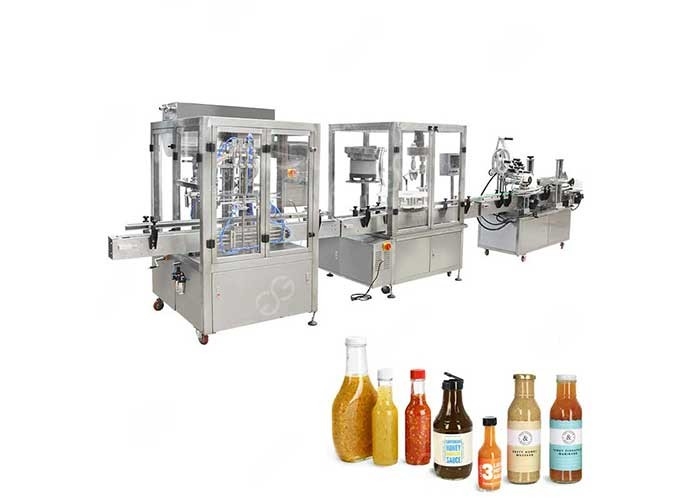

Working Flow of Hot Sauce Filling Machine:
Artificial feeding bottle to the conveyor belt automatic bottle to the station, automatic rotation -- quantitative automatic filling--automatic sorting lower cover (a vibration feeding cover) (optional) --automatic capping -- finished product conveyor belt output.
