Product Details:
Payment & Shipping Terms:
|
| Certification: | CE ISO | Voltage: | 220V/380V |
|---|---|---|---|
| Type: | Washer | Dimension(l*w*h): | Different Machine With Different Dimension |
| Power(w): | 1.5kw | Material: | Stainless Steel,SUS304 |
| Application: | Vegetable Cleaning | Usage: | Industrial Usage |
| Feature: | High Efficiency |

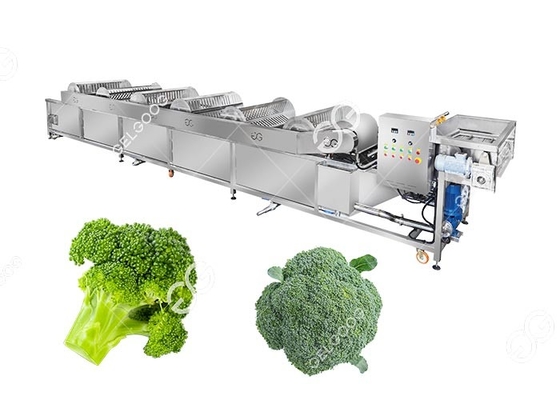

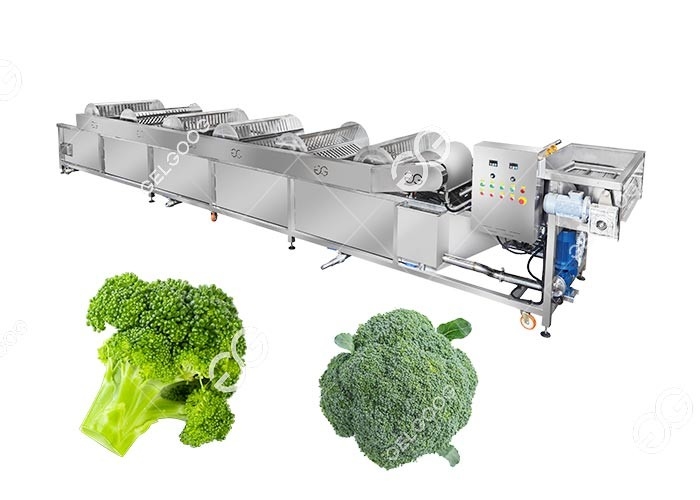

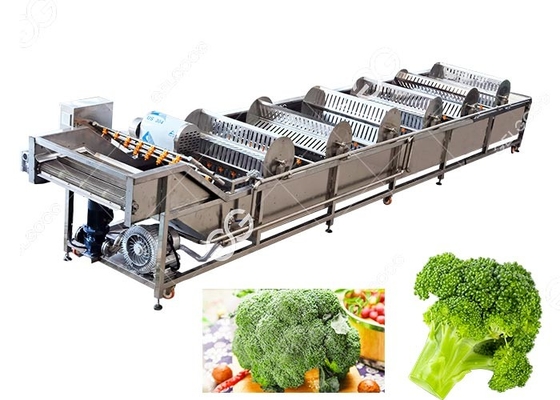

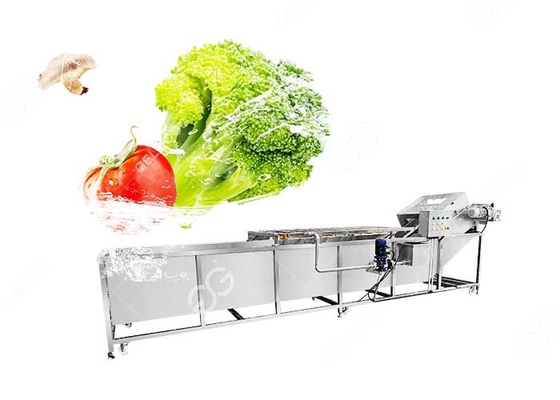

Introduction of Frozen Broccoli Washing Machine
Frozen Broccoli Washing Machine includes a cleaning tank, a bubble generator, a scrubbing pipeline, a circulating pump, and a conveyor belt. The cleaning tank is a tank with an inner cavity and an upper opening. One side of the cleaning tank is provided with a water inlet pipe and the other side is provided with a bottom The water outlet pipe is connected to the water inlet pipe through the circulating pump, and the bottom of one end of the cleaning tank is provided with a bubble generator to form a bubble cleaning area, and a flushing area connected to the bubble cleaning area, The scouring area is a plurality of the scrubbing pipes arranged in parallel and fixed on the side wall of the cleaning tank through a connecting plate, the scrubbing pipes are provided with brushes, and the scrubbing area is provided with a conveyor belt. Fruits and vegetables can be cleaned by air bubbles first,and then cleaned by the brush in the scrubbing pipe, so the cleaning effect is more ideal.
Features of broccoli washing machine
This machine has a high degree of automation. The cleaning, conveying, and discharging are automatically completed by the mesh
belt transportation. The machine can quickly and wash away the impurities on the materials, uses circulating water, and saves
water efficiently. The materials are poured directly into the cleaning tank. Air bubbles and spraying make the material flip and
rub in the water (soaking effect), separate impurities from the product, and ensure high-quality clean vegetables.
Advantages of broccoli washing machine
1. full stainless steel 304
2.spray device and clean more vegetable fruit seafood fish etc
3.mesh belt full stainless steel and can design by customer production and demand
4.famous motor and can use for long time
5.drain water and dirty earth etc
6.easy to clean machines
7.mobile wheel and easy mobile machine
8. bubble machine and make water roll and easy remove dirty earth etc
Broccoli washing machine parameters
| Model | Mesh belt width | Transmission power | Pump power | Air pump power | Dimensions(MM) |
| GG-XQ2500A | 800 | 0.75 | 0.75 | 2.2 | 2725×1504×1329 |
| GG-XQ3000A | 800 | 0.75 | 0.75 | 2.2 | 3225×1504×1329 |
| GG-XQ3500A | 800 | 0.75 | 0.75 | 2.2 | 3725×1504×1329 |
| GG-XQ4000A | 800 | 0.75 | 0.75 | 2.2 | 4225×1504×1329 |
| GG-XQ5000A | 800 | 1.5 | 1.5 | 4 | 5225×1504×1329 |
| GG-XQ6000A | 800 | 1.5 | 1.5 | 4 | 6225×1504×1329 |
