Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes

China Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes supplier
Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes supplier Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes supplier Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes supplier

Large Image :  Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes

Product Details:

Place of Origin: China
Brand Name: Gelgoog
Certification: CE
Model Number: GG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wood packing as export standard
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets/Month
Contact Now
Detailed Product Description
Candy Shape: Square Sugar, Heart-shaped Sugar And Special Shape Sugar Cube Different Specifications: 16*16*13mm, 6*16*15mm, 18*18*12 And So On
Certification: CE, ISO And SGS Install: Yes
Grinder Feed size: <5mm Place Of Origal: China
High Light:

cereal bar forming machine

,

breakfast cereal making machine

Automatic Cubic Sugar Making Machine , Sugar Cube Forming Machine For Sale



Introduction of the cube sugar making machine:

The cube sugar machine is an automatic feeding sugar ,automatic pressing forming, continuous briquetting machine .It mainly used for pressure square shape and other various shapes. The cube sugar can add the coffee and tea.



sugar information:

superfine sugar is a fine grained refined sugar as raw material to compressed into half a square (that is, half of the cube) of advanced products, sugar sugar is the feature of quality pure, white and smooth, candy bar complete edges, consolidation and firm, not easy to break, but quickly dissolve in water, clear solution.
Sugar production of grain size of granularity appropriate refined sugar, use a small amount of refined sugar concentrate (or clean water), become wet sugar content of 1.5 2.5% of the water, and then made into half block forming machine, and then through the dryer drying of less than 0.5% of the water, cooling after packaging.



Feature of sugar cube machine:

This machine is the latest developed sugar refiner, high precision, wear-resistant, stable and reliable machine assembly.
It will be granulated sugar granules made from compressed square sugar and dried and dried.
The machine's PIC control, high automation, electrical components can be imported, brand accessories, stable quality, easy maintenance.

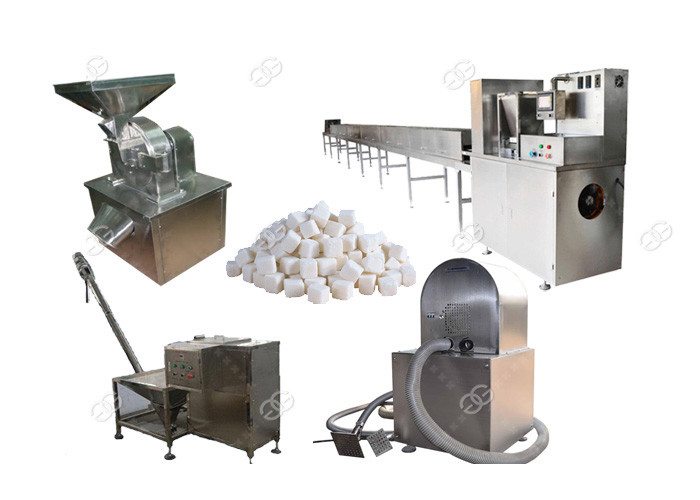

Cube sugar production line Technical Parameters:

No. Equipment Name Detailed Specifications
1 Sugar Grinding Machine

GG-100

Sugar powder fineness:12-150mesh

Output:50-100kg/h

Feed size: <5mm

Motor power:2.2kw

Weight:250kg

Dimension:780*750*1500mm



2 Mixed Spiral Feeding Machine

Model: GG-SG

Usage: mixing and automatic feeding

Motor power: 3.85kw

Size: 500*500*1650mm

Weight: 140kg

Discharge port from the ground: 1700mm

3 Sugar Forming Machine

Model: GGF-60

Output:60-120kg/h

Power:3kw,380V/50Hz

PLC control, man-machine interface.

Machine size:1200*600*1400mm

Weight:800kg

4 Tablet Linkage Conveyor

Model: GGS-2

Function: Linkage & Transmission

Dimension: 1300*700*1000mm

Weight: 60kg

Efficiency: 0-10m3/min

Air pressure: 0.3-0.5Mpa

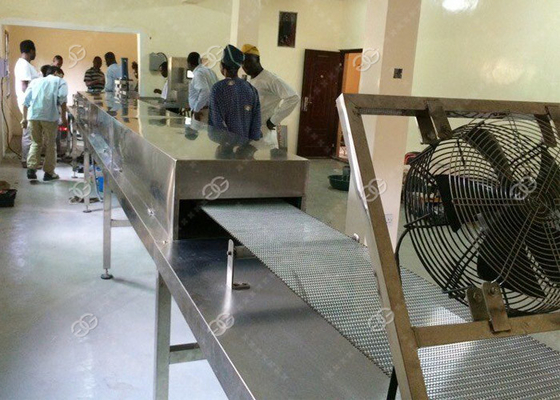

5 Infrared Drying Tunnel

Model: GGH-3

Efficiency: 0-10m3/min

Size: 1900*700*1150mm

Weight: 90kg*4

Power: AC380V50Hz 2KW*4

6 Sugar Cooling Machine

Model: GGQ-1

Dimension: 1900*700*700mm

Weight: 60kg

Function: Cooling

Efficiency: 0-10m3/min

7 Cube Sugar Packing Machine Semi-automatic

Model: GG-250

Maximum pressure: 36(43)Kpa

Maximum degree of vacuum: 26(31)KPA

Chuck handle: 2 pcs

Dimension: 650*600*950mm

Weight: 75kg

Table: customized

Feature: infinite speed variation

Rated voltage: 220V/380V 50-60Hz

Power: 2.2kw



Automatic Raw Sugar Cube Making Machine Manufacturing Process White Sugar Cubes
