Product Details:
Payment & Shipping Terms:
|
| Application: | Sugar,and Other Nuts | Grinding Size: | 10-100 Mesh |
|---|---|---|---|
| Capacity: | 60-1500kg/h | Crusher Motor: | 4kw |
| Cleaner Motor size: | 0.75kw | Dimension (mm): | 550*600*1250 |
| High Light: | cereal bar forming machine,breakfast cereal making machine |
||

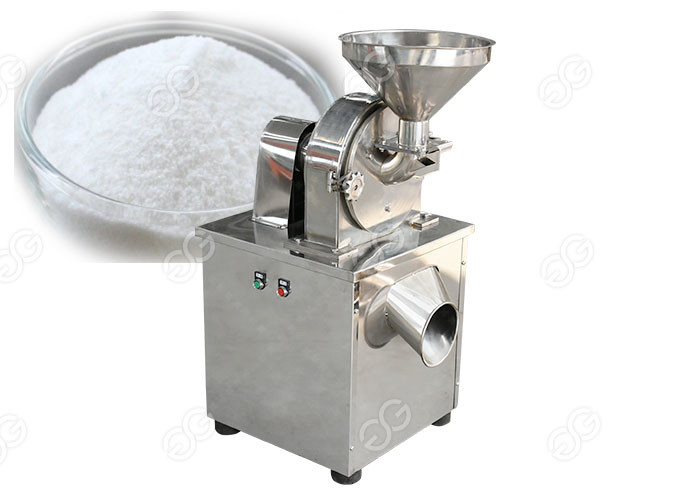

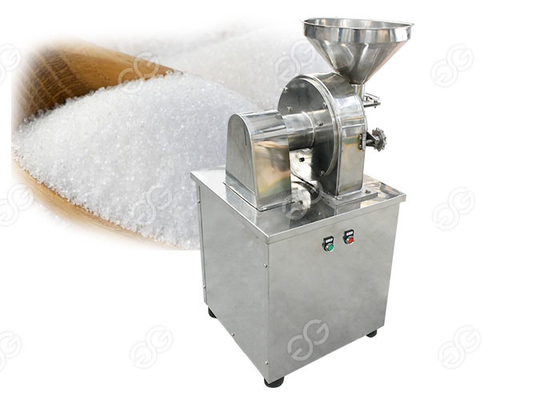

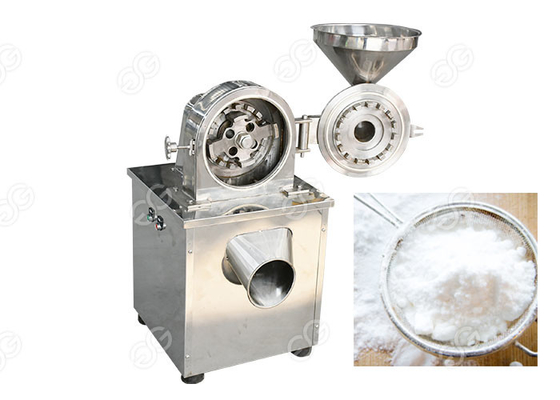

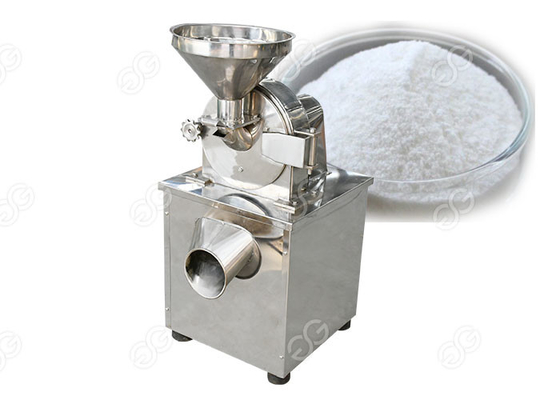

Small Scale Sugar Powder Making Machine, Sugar Grinding Machine 10-100 Mesh
Introduction of the sugar powder making machine:
The sugar grinder machine has a wide application and is widely used for pharmaceutical industry, chemical industry, foodstuff industry, grain industry and so on.
1. Pharmacy: herb powder, medicine powder .etc.
2. Chemistry: plastic powder, nylon powder .etc
3. Foodstuff: coffee beans, spices, corn, leaves, wheat, cassava, rice, sugar, salt .etc.
Characteristics of the sugar powder grinding machine:
The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
Sugar grinder machine Working Method
The machine uses the relative movement between the active and fixed fluted disc to impact, grind and crush the target materials;Feeding material is discharged directly from the grinding chamber of the main frame;
Technical parameter of the sugar powder making machine:
| Model | GG-S20B | GG-S30B | GG-S40B | GG-S60B |
| Capacity(kg/h) | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-100 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 | 680 |
