Electric Imperial Roll Productio Line|Egg Roll Making Machine Manufacturer

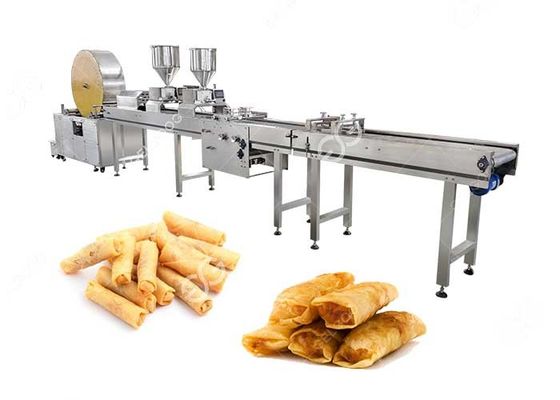

Introduction of Imperial Roll Productio Line
This imperial roll machine is a newly developed spring roll processing equipment in our factory. The machine can make large capacity and high quality of egg rolls, spring rolls. It has high degree of automation, automatic temperature control and good hygienic conditions.
Flow: Put the prepared pulp into the barrel, when the baking wheel is heated to 120 C, start the pulp pump to deliver the pulp to the leather making mould (customized shape according to customer requirements), then make the pulp adhere to the arc surface of the baking wheel through the leather making mould.
When the baking wheel rotates over 270-300 degrees, the pulp is ripened, and then the egg roll leather is separated from the wrapping conveyor belt by the spatula. When the egg roll skin passes through the outlet of the filling machine, the filling opportunity distributes the filling evenly (the number of filling grams can be adjusted) on each spring roll skin, and then the filling is wrapped with the spring roll skin, and finally the spring roll is formed by the wrapping part of the roll circle. The final spring roll falls directly on the cooling conveyor belt. At this time, the spring roll can be sorted manually into the packaging box and put into the cold storage. It can also be fried directly through the fryer.
Principle: According to the technological requirements of flour pulp production, the flour pulp is made well. After being heated and baked by a round baking wheel, the flour pulp becomes a custom-made spring roll skin with fixed thickness.
Advantages of Automatic Egg Roll Production Line
1. The machine has compact structure and reasonable design. The pulp bucket, host, and mesh belt adopt an independent split design, and the drive is individually controlled.
2. The imperial roll production line adopts a variable frequency speed regulating motor, which is easy to adjust and has no noise. The temperature control device is a far-infrared temperature detector.
3. The slurry bucket is inclined to collect materials, detachable, and the bottom is designed with a valve, which makes it easy to clean the beating and mixing materials.
4. The imperial roll making machine's slurry pump adopts independent frequency conversion control to strictly control the material flow.
5. The food-contact parts of chun juan machine are made of food-grade SUS 304. It is easy to clean and hygienic.
6. The bottom is equipped with ground angle lifting bolts to adjust the horizontal placement of the equipment. The heavier rubber universal wheels ensure convenient movement of the equipment and protect the floor glue of the workshop.
Parameter Table of Egg Roll Making Machine:
|Spring Roll Wapper Part
|Spring Roll Folding Part
|Spring Roll Forming Part
